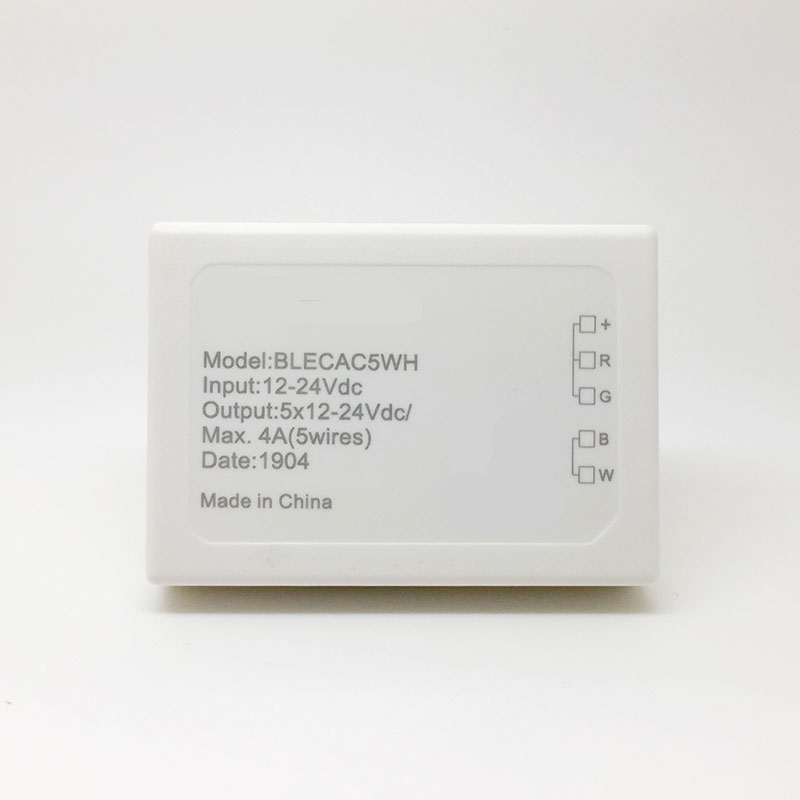

BLECAC5

This controller takes a 12-24Vdc input and converts it into 5 x 12-24Vdc (4A) outputs to a 5-wire RGBW fixture in order to support a BLE wireless ON/OFF, dimming, CCT and color control.

Technical Specs:
Input: 12-24Vdc
Output: 5 x 12-24Vdc/4A (5 wires)

Applications:
-RGBW 5-wire LED tapes
-RGBW 5-wire LED bars
-Any low voltage DC fixtures with 5-wire RGBW configuration

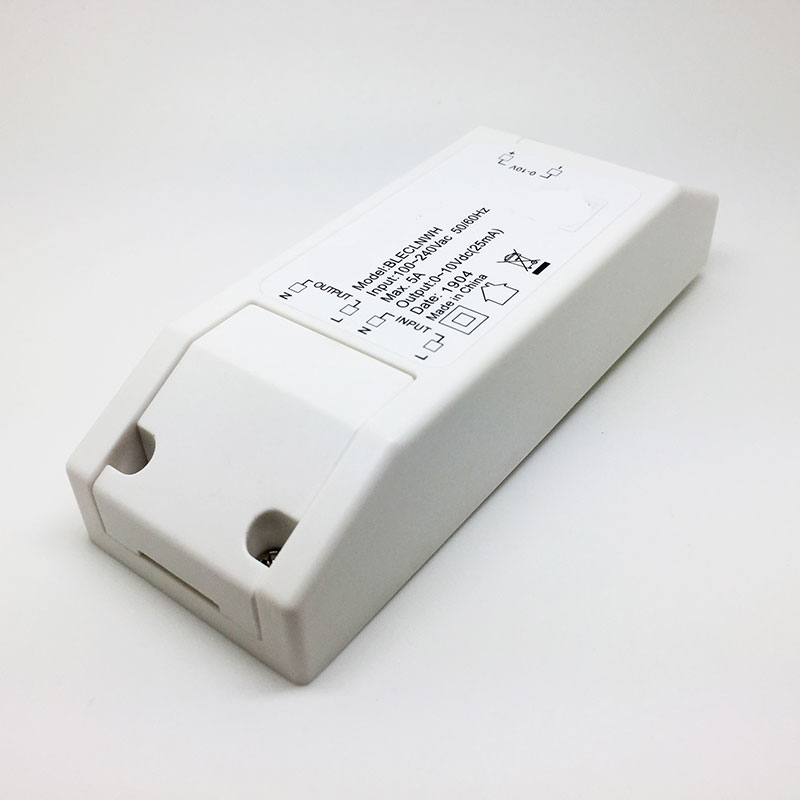

BLECLNM

This controller takes a line voltage input and passes it out to any 0-10V dimmable driver through a 5A relay.
It also provides a 0-10V control signal to the driver in order to provide a BLE wireless ON/OFF and dimming control.

Technical Specs:
Input: 100-240Vac
Output: 100-240Vac (5A) and 0-10V control signal (25mA)

Applications:
Any LED fixtures with a 0-10V dimmable driver

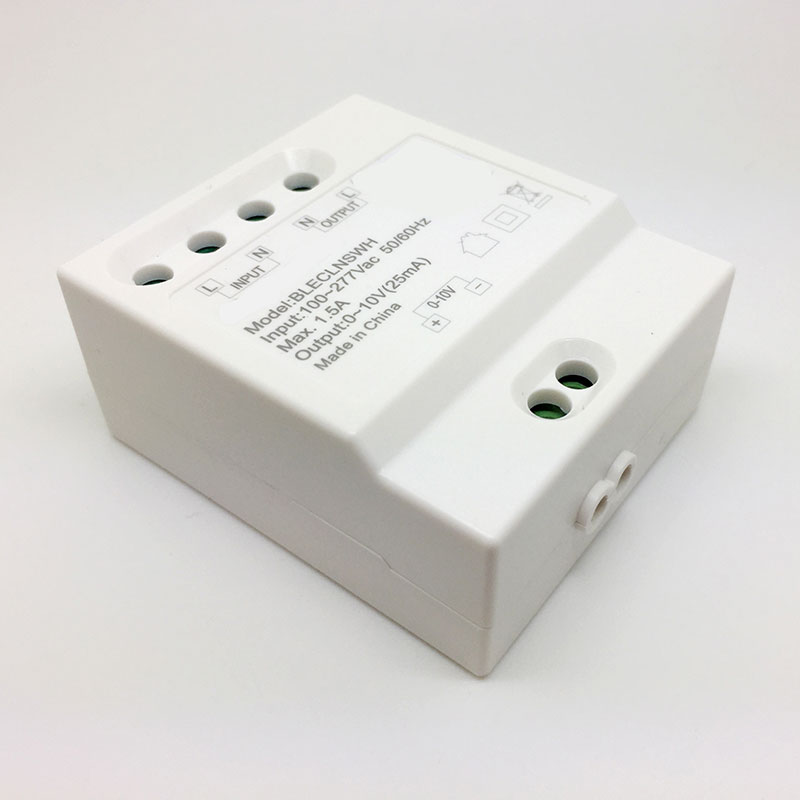

BLECLNS

This controller takes a line voltage input and passes it out to any 0-10V dimmable driver. It also provides a 0-10V control signal to the driver in order to provide a BLE wireless ON/OFF and dimming control.

Technical Specs:
Input: 100-277Vac
Output: 100-277Vac (1.5A) and 0-10V control signal (25mA)

Applications:
Any LED fixtures with a 0-10V dimmable driver

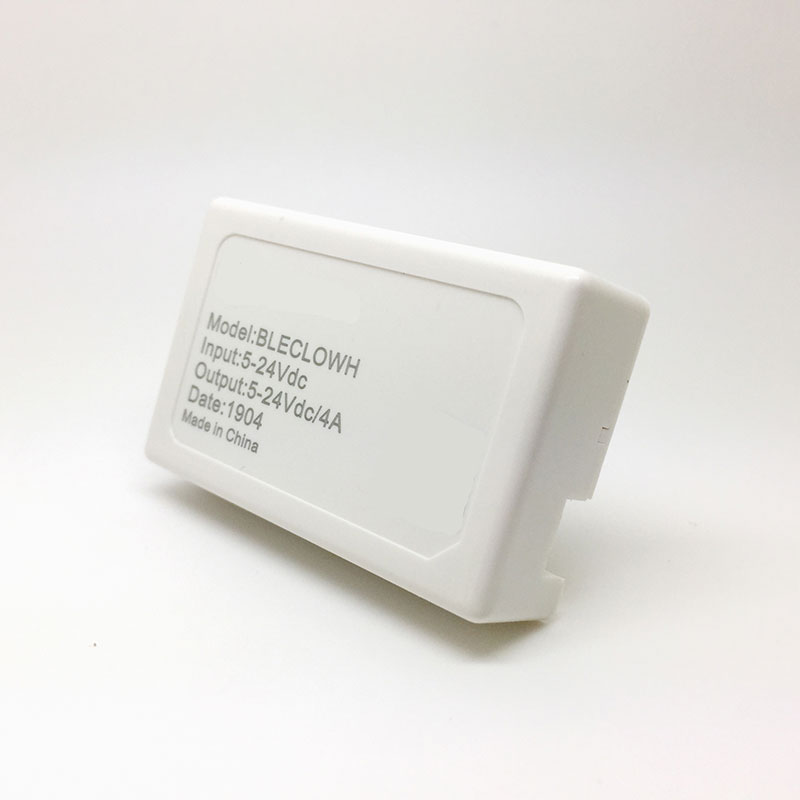

BLECLO

This controller passes through 5-24Vdc/4A from the input to its output and provide a BLE wireless ON/OFF and dimming control in between.

Technical Specs:
Input: 5-24Vdc
Output: 5-24Vdc/4A

Applications:
- LED tapes
- LED bars
- 5-24V LED puck lights
- Any low voltage DC fixtures

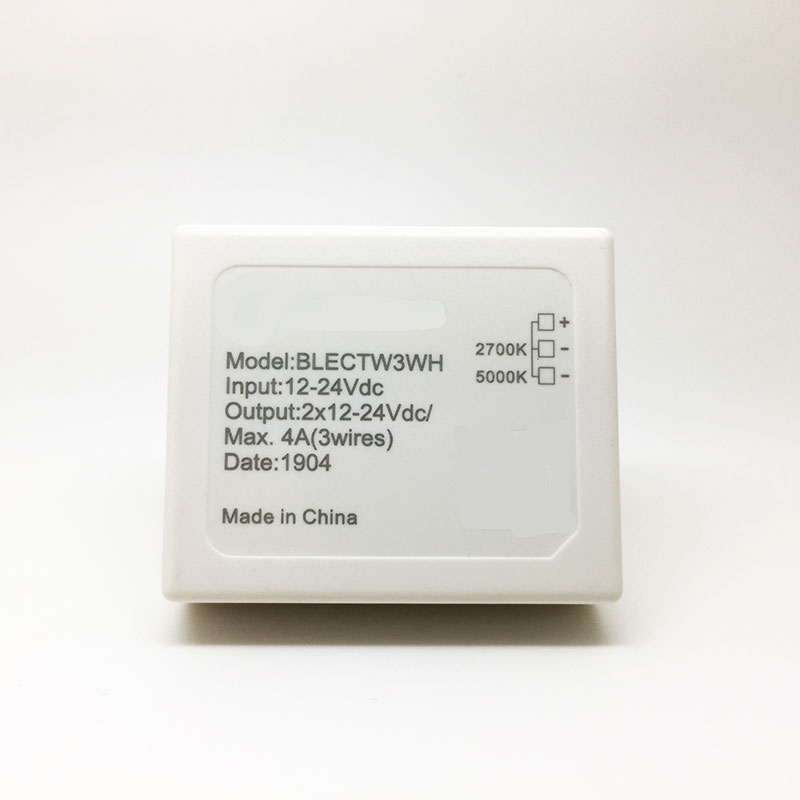

BLECTW3

This controller takes a 12-24Vdc input and converts it into 2 x 12-24Vdc (4A) outputs to a 3-wire tunable white fixture in order to support a BLE wireless ON/OFF, dimming and CCT control.

Technical Specs:
Input: 12-24Vdc
Output: 2 x 12-24Vdc/4A (3 wires)

Applications:
-Tunable white 3-wire LED tapes
-Tunable white 3-wire LED bars
-Any low voltage DC fixtures with 3-wire tunable white configura

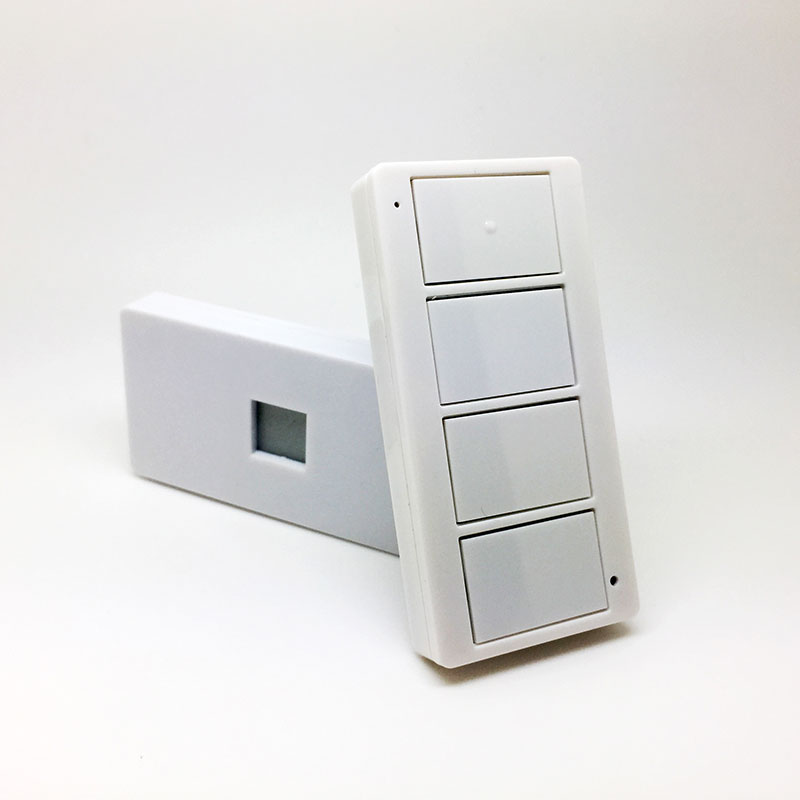

BRC4

This remote control uses lithium battery and can provide BLE wireless ON/OFF and dimming control through the 4 buttons on its faceplate. Ranged 30 meters line of sight.

Technical Specs:
Input: CR2032 Lithium Battery, 3V
Number of buttons: 4
Output: BLE wireless control

Applications:
Install smooth surface
US single gang fit wall switch

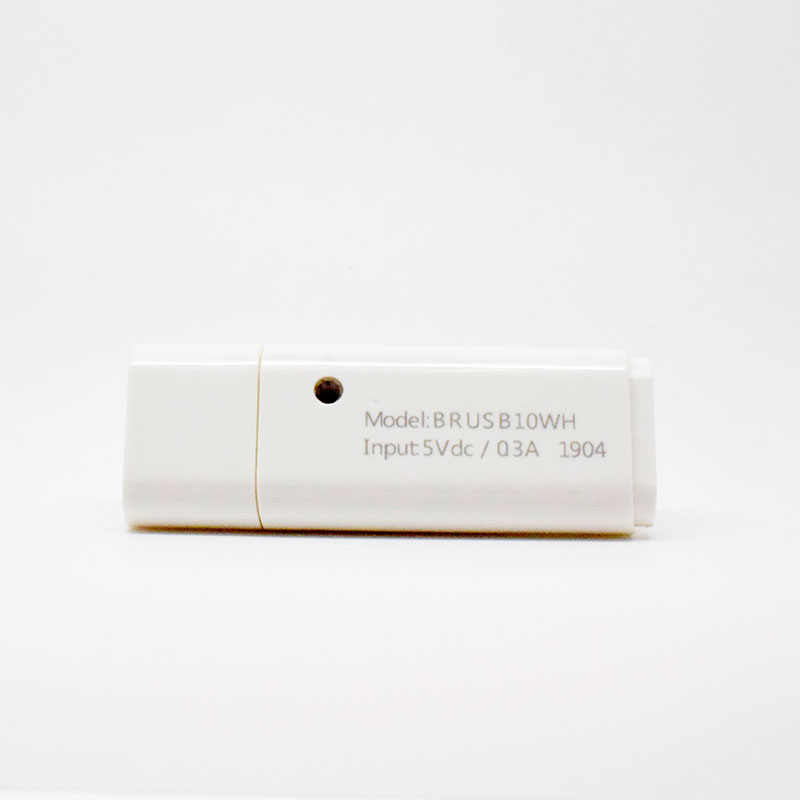

BRUSB10

This repeater is used to extend the range of our BLE control system. We recommend to install 1 repeater every 300 meters(Line of Sight) to ensure the stability of the system.

Technical Specs:
Form Factor: USB dongle
Input: 5Vdc, 500mA (Standard USB socket)
Output: Range extension for BLE control system

Applications:
Range extension.

BWS4DC

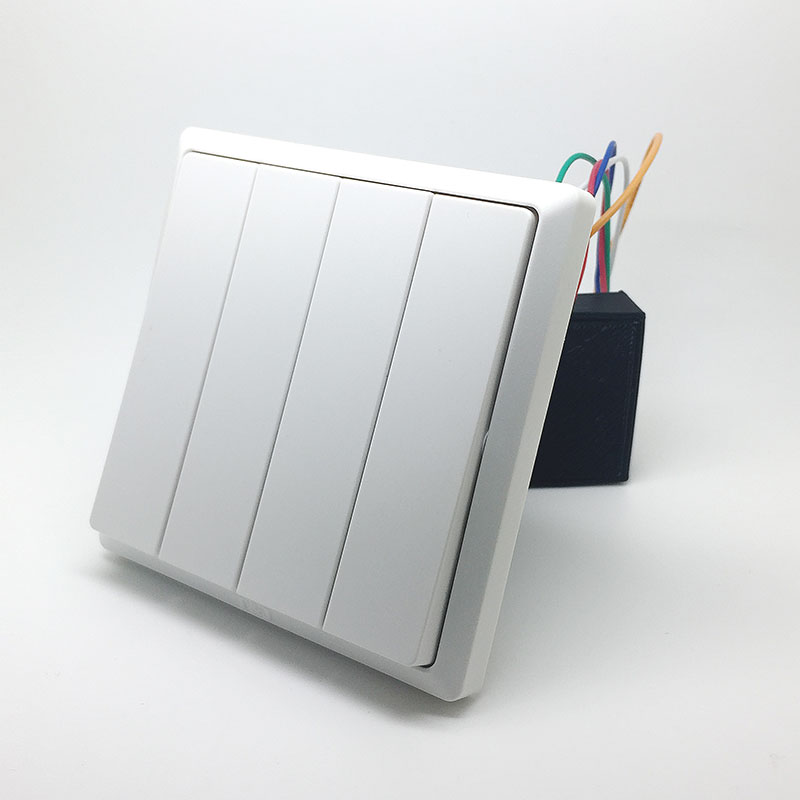

BWS4EU-S

This wall switch only requires the L wire (100-240Vac) to power it up and it will provides BLE wireless ON/OFF and dimming control through the 4 buttons on its faceplate. Ranged 30 meters line of sight.

Technical Specs:
Form Factor: Standard EU electrical box fit
Input: 100-240Vac, up to 4 buttons input signal
Output: BLE wireless control

Applications:
Standard EU electrical box fit.

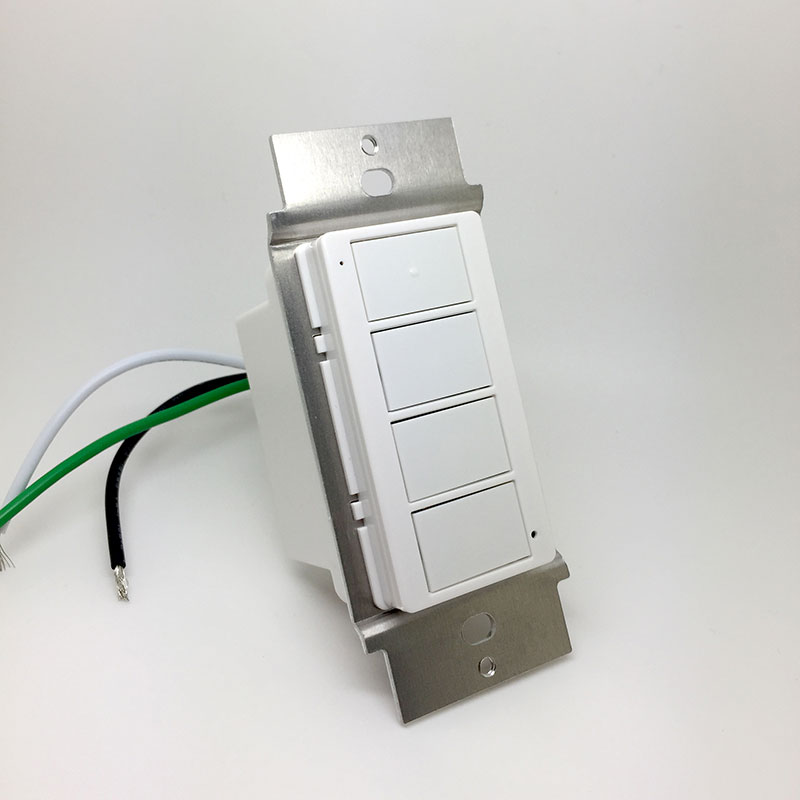

BWS4US

This wall switch requires both L and N wires (100-277Vac) to power it up and it will provides BLE wireless ON/OFF and dimming control through the 4 buttons on its faceplate. Ranged 30 meters line of sight.

Technical Specs:
Form Factor: US single gang box fit
Number of buttons: 4
Input: 100-277Vac
Output: BLE wireless control

Applications:
US single gang fit wall switch

BWS4US-S

This wall switch only requires the L wire (100-277Vac) to power it up and it will provides BLE wireless ON/OFF and dimming control through the 4 buttons on its faceplate. Ranged 30 meters line of sight.

Technical Specs:
Form Factor: US single gang box fit
Number of buttons: 4
Input: 100-277Vac
Output: BLE wireless control

Applications:
US single gang fit wall switch.
